Mobile Boring Machine Standard
Portable Line Boring Machine Engineering Mechanical for Excavating Machinery.
Professional portable boring machine for repairing worn bores and pivot points directly on-site without dismantling heavy equipment.
Portable Line Boring Machine Engineering Mechanical for Excavating Machinery.
Professional portable boring machine for repairing worn bores and pivot points directly on-site without dismantling heavy equipment.

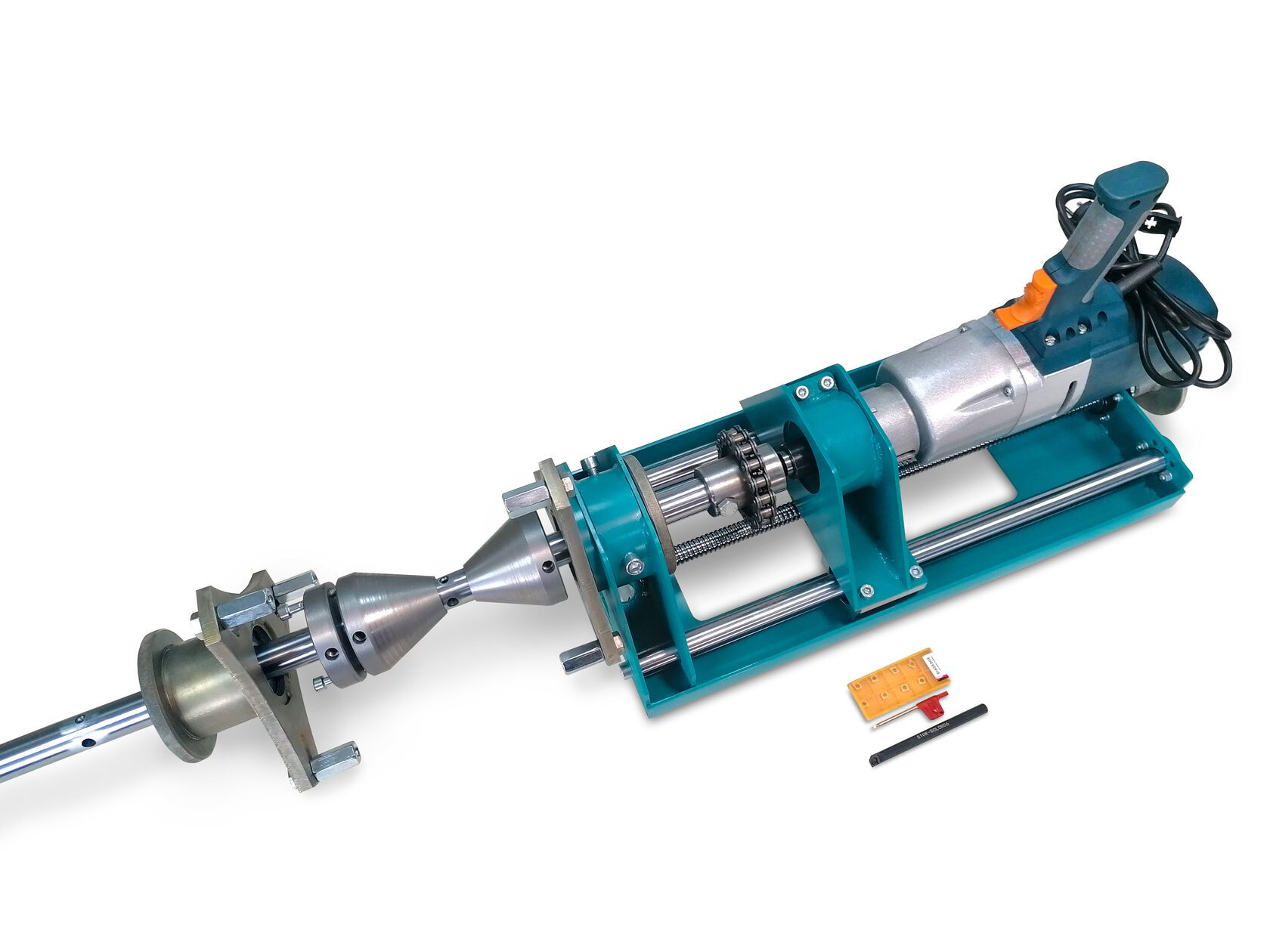

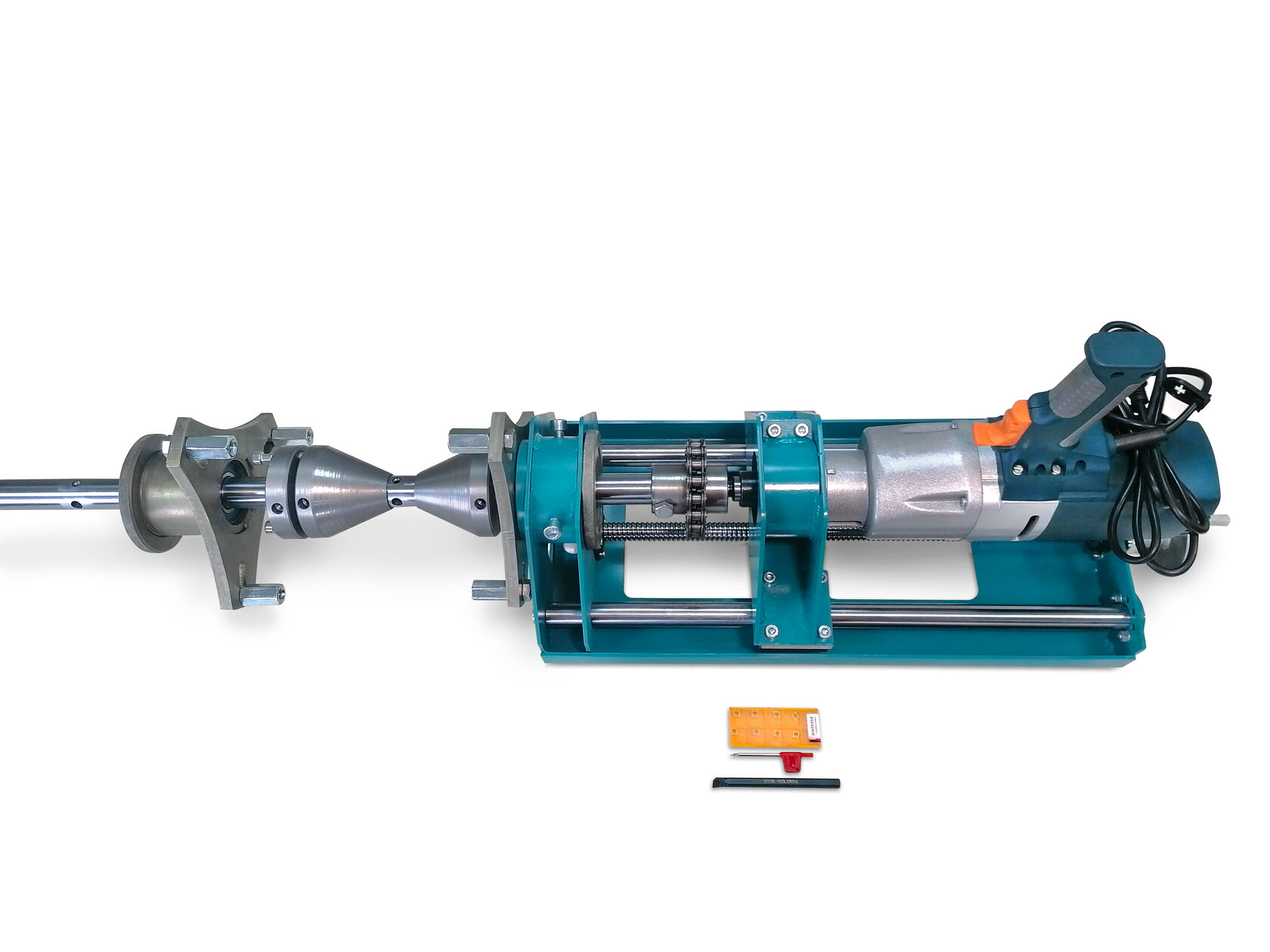

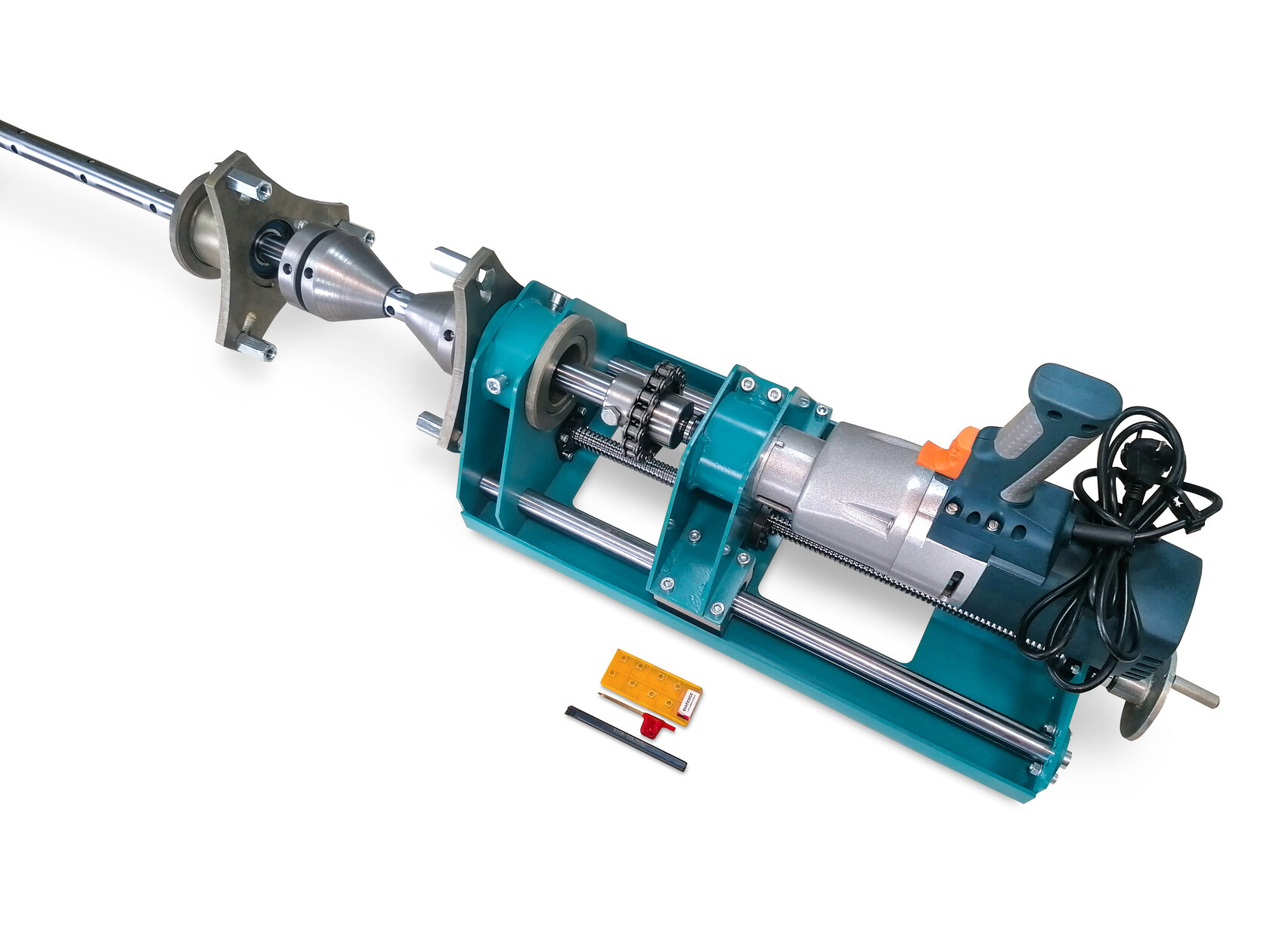

The Mobile Boring Machine Standard is designed to repair worn holes in special equipment, assemblies and machine components directly at the work site.
The machine covers most boring operations with bore diameters from 32 mm to 250 mm and supports boring bars with diameters of 30 mm, 40 mm and 50 mm.
Optional boring bars are available in lengths from 600 mm to 3000 mm, while carriage travel ranges from 300 mm to 600 mm.

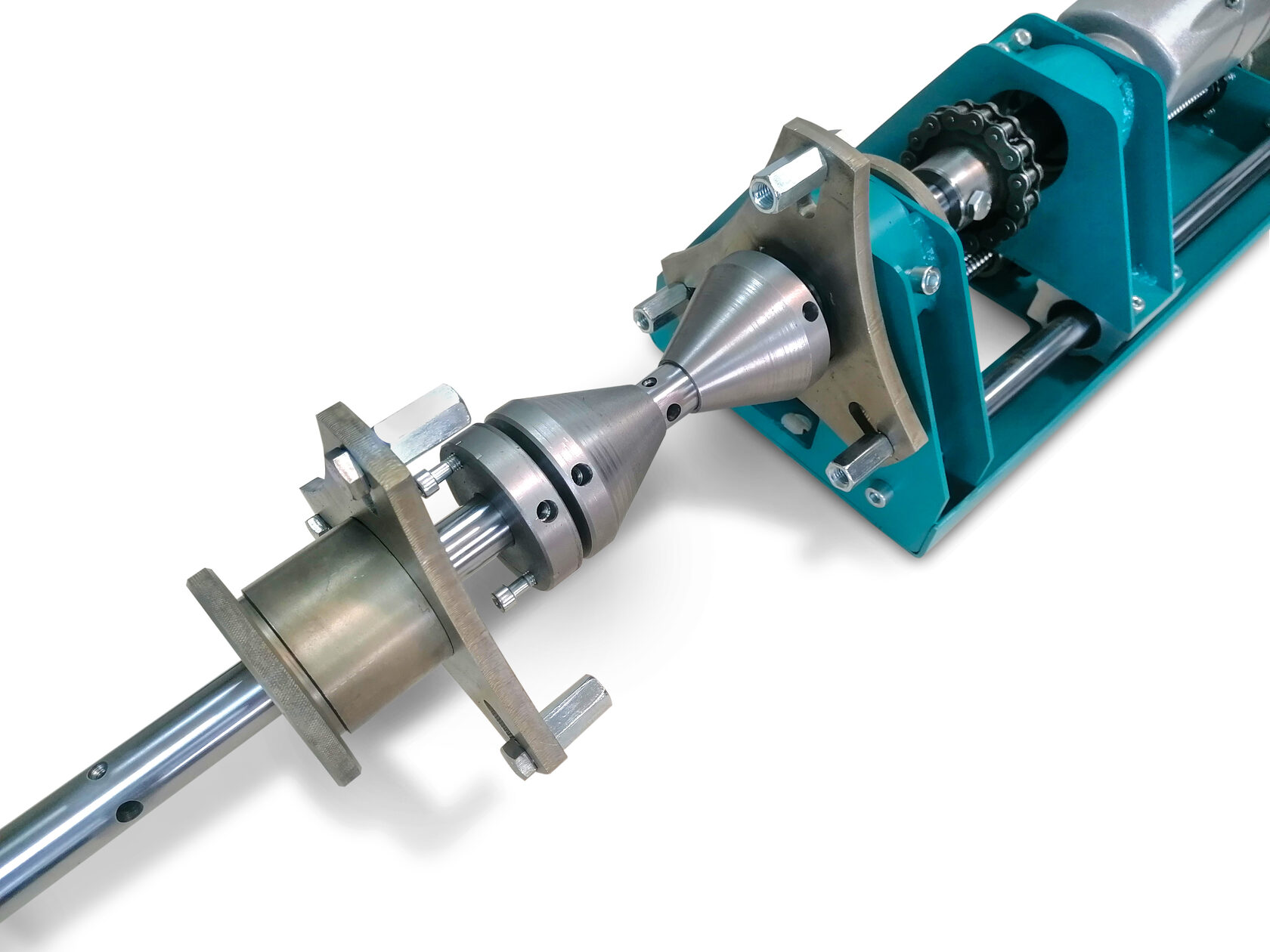

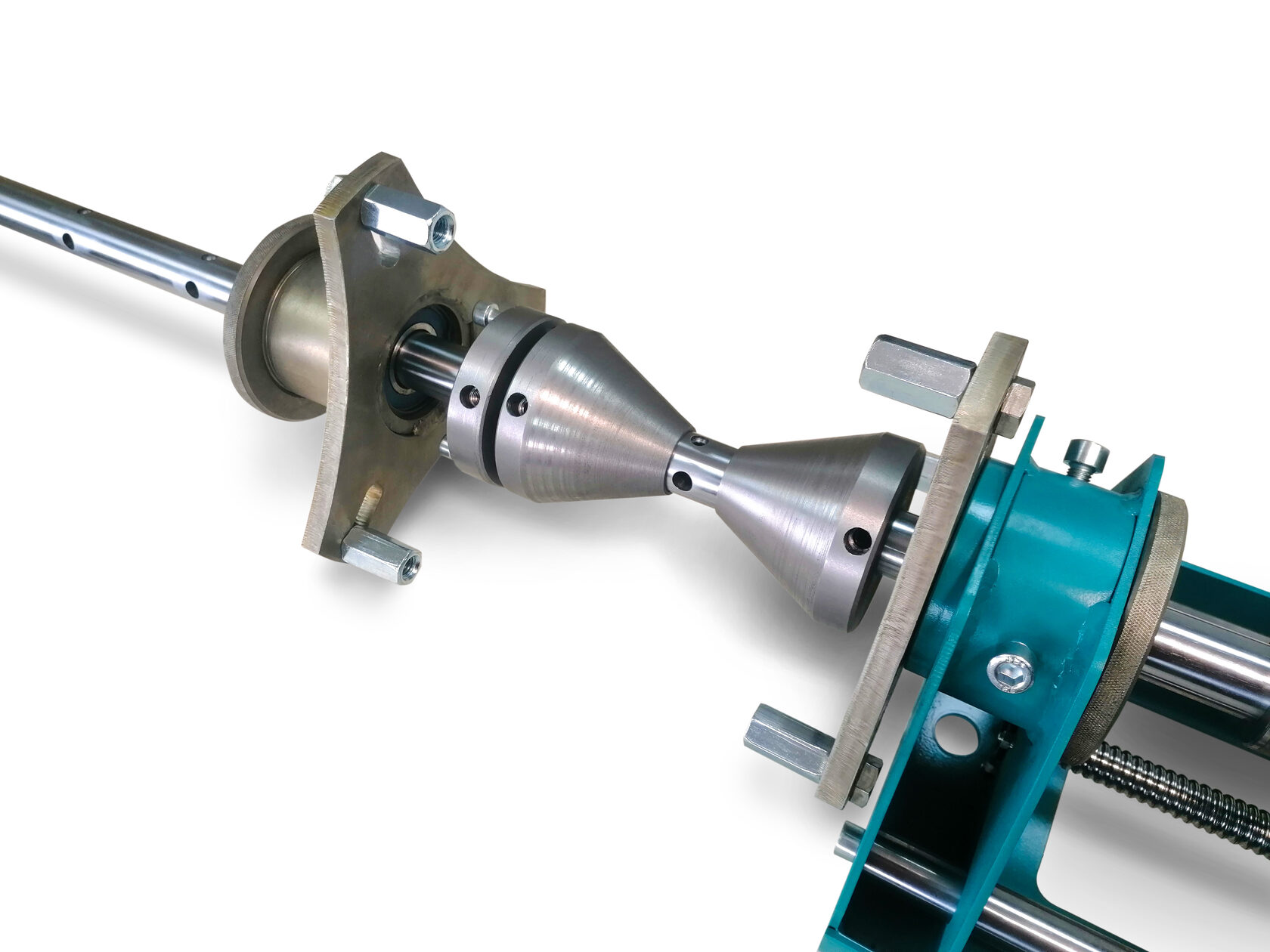

The boring bar is centered coaxially with the hole being machined and secured using two main supports. A powerful 2 kW drive unit provides spindle rotation at 330 or 500 RPM.
Feed can be operated manually or automatically depending on configuration.
| Bore Diameter Range | 32 – 200 mm |
| Boring Bar Diameter | 30 – 50 mm |
| Boring Bar Length | 600 – 3000 mm |
| Working Stroke | 300 – 600 mm |
| Feed Control | Manual / Automatic |
| Spindle Speed | 330 / 500 RPM |
| Drive Power | 2 kW |
| Power Supply | 220V / 50Hz |
| Maximum Boring Depth | 300 – 600 mm |
| Machining Accuracy | H7 |
| Surface Roughness | Ra 1.6 |

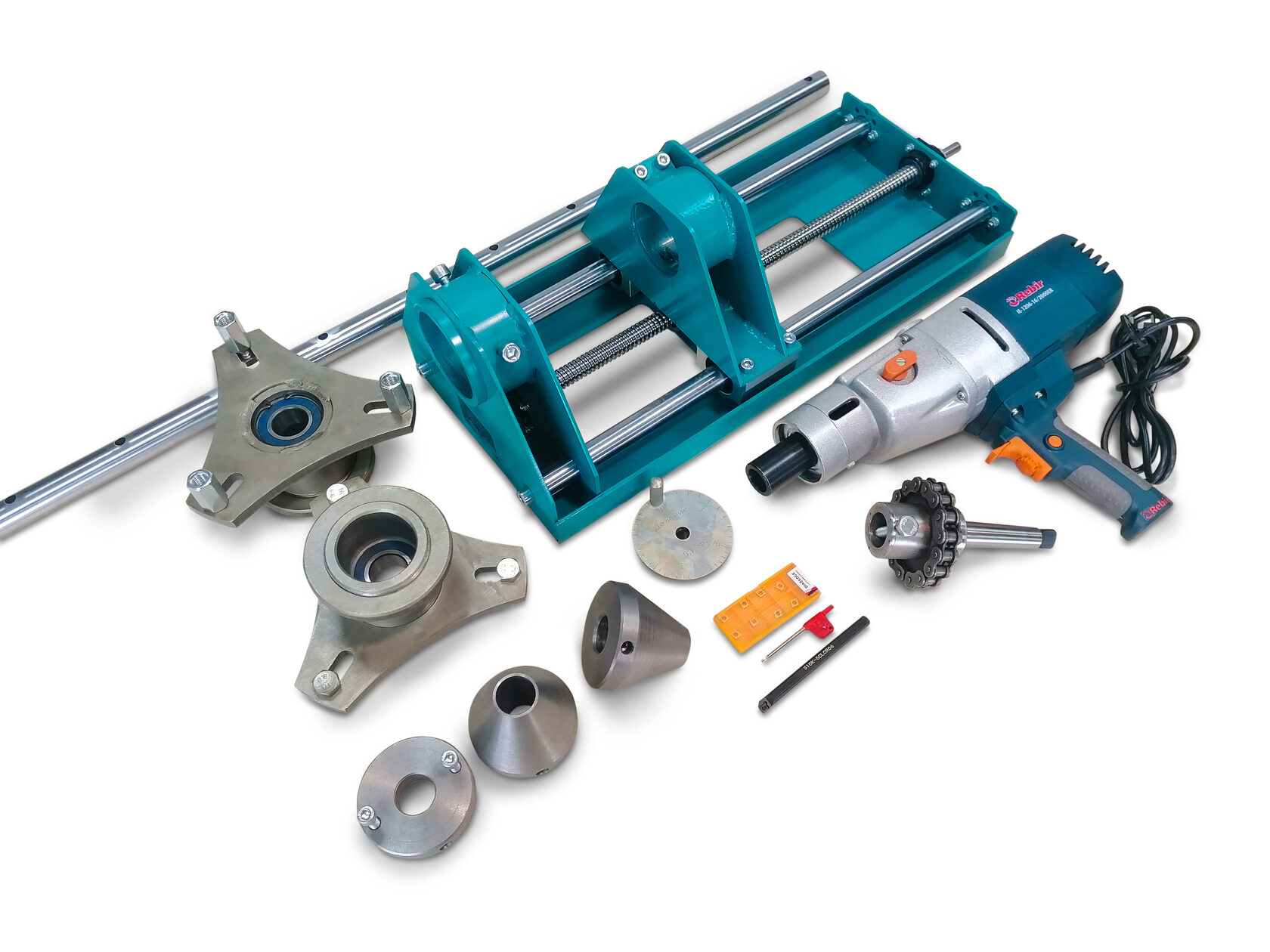

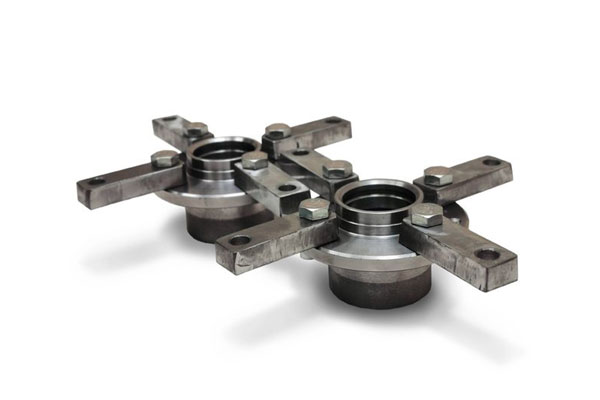

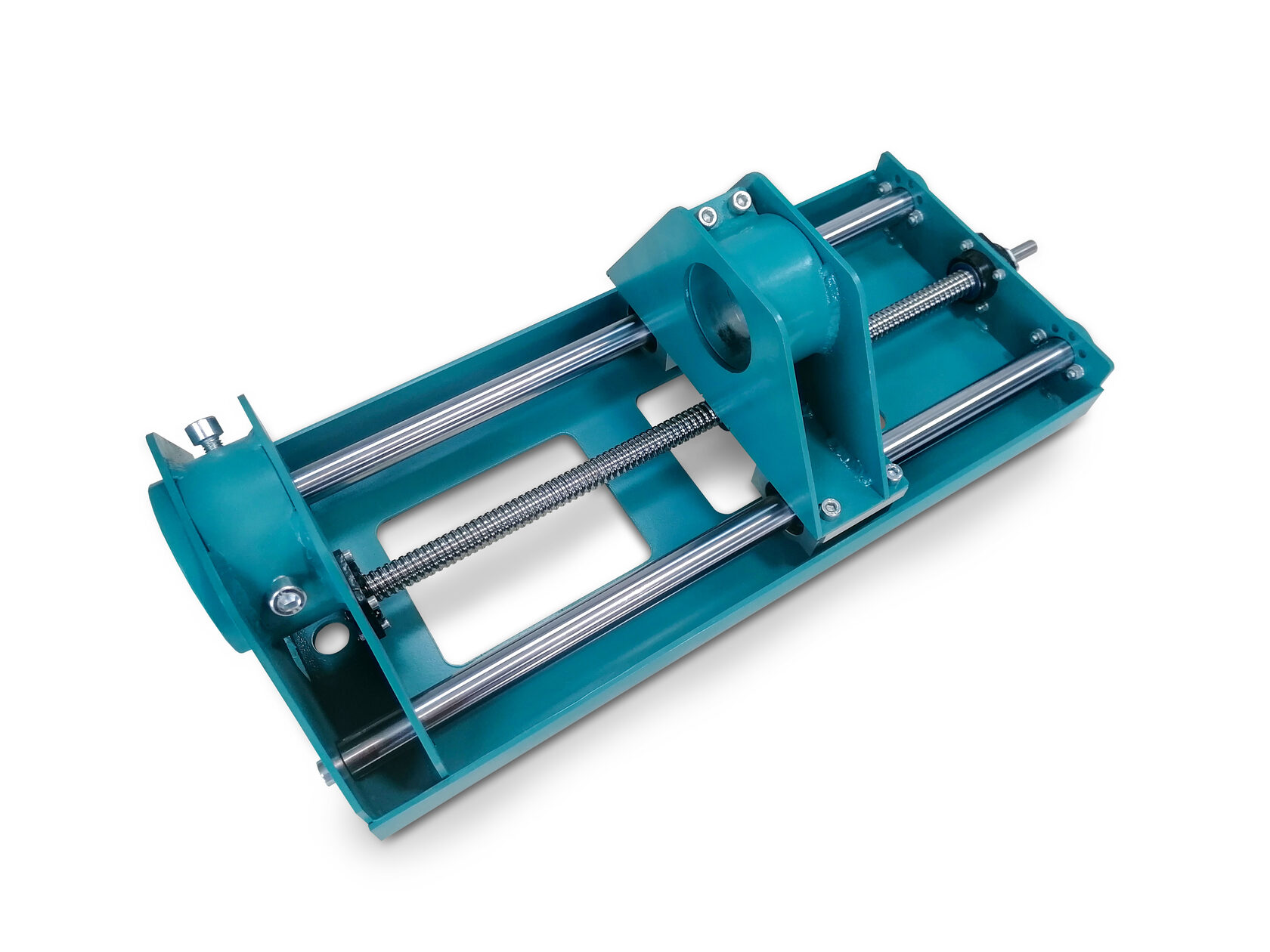

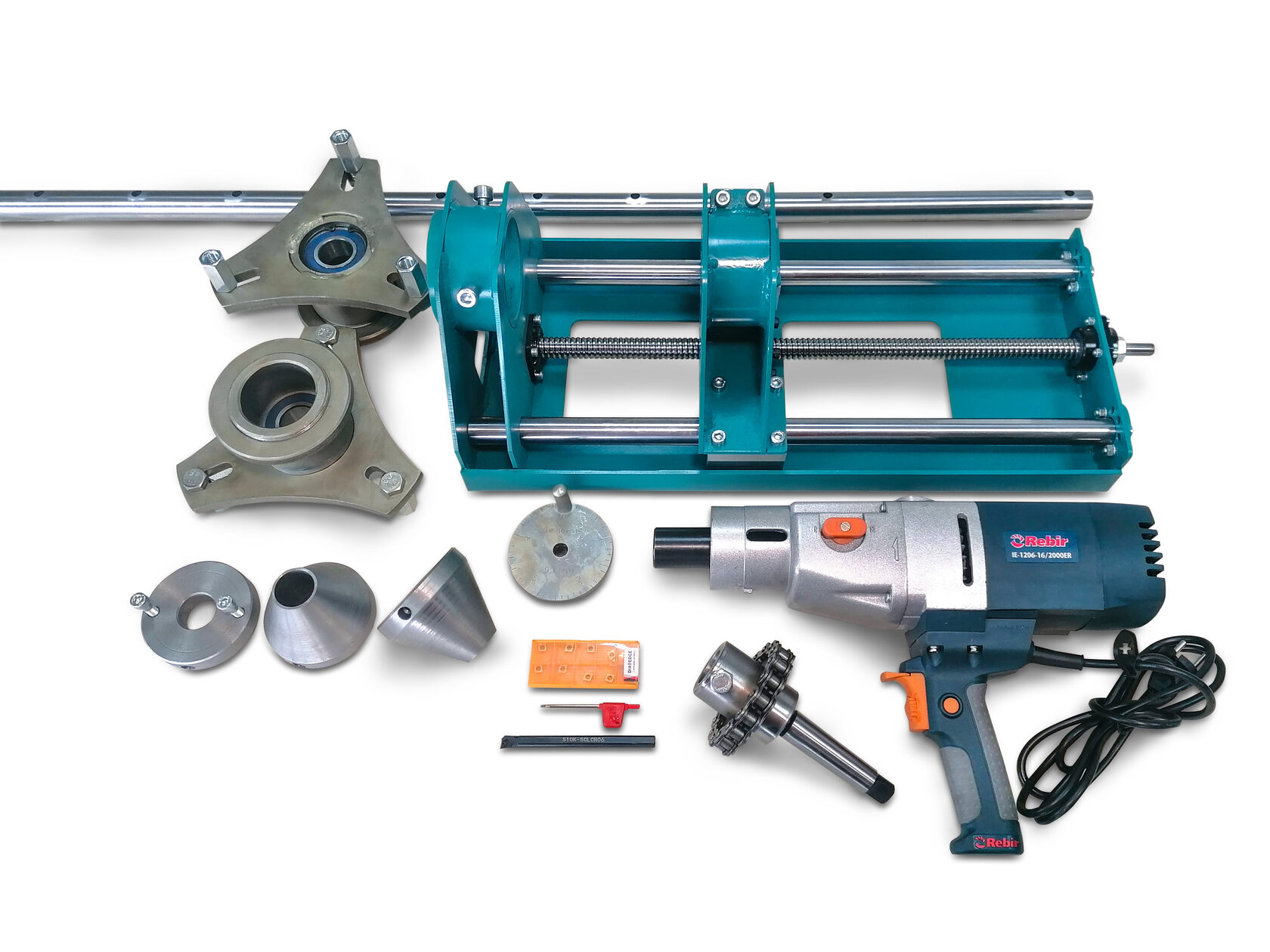

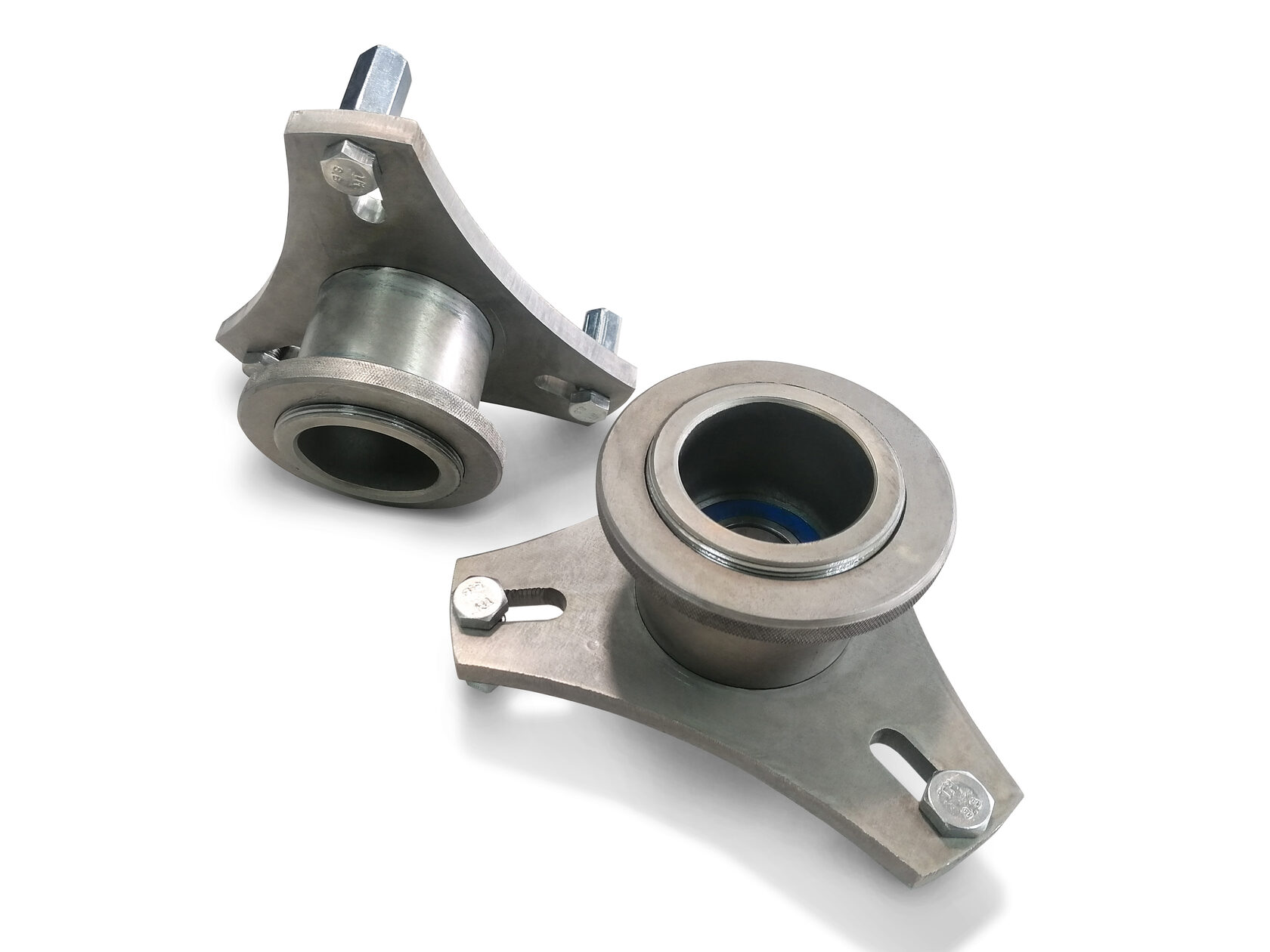

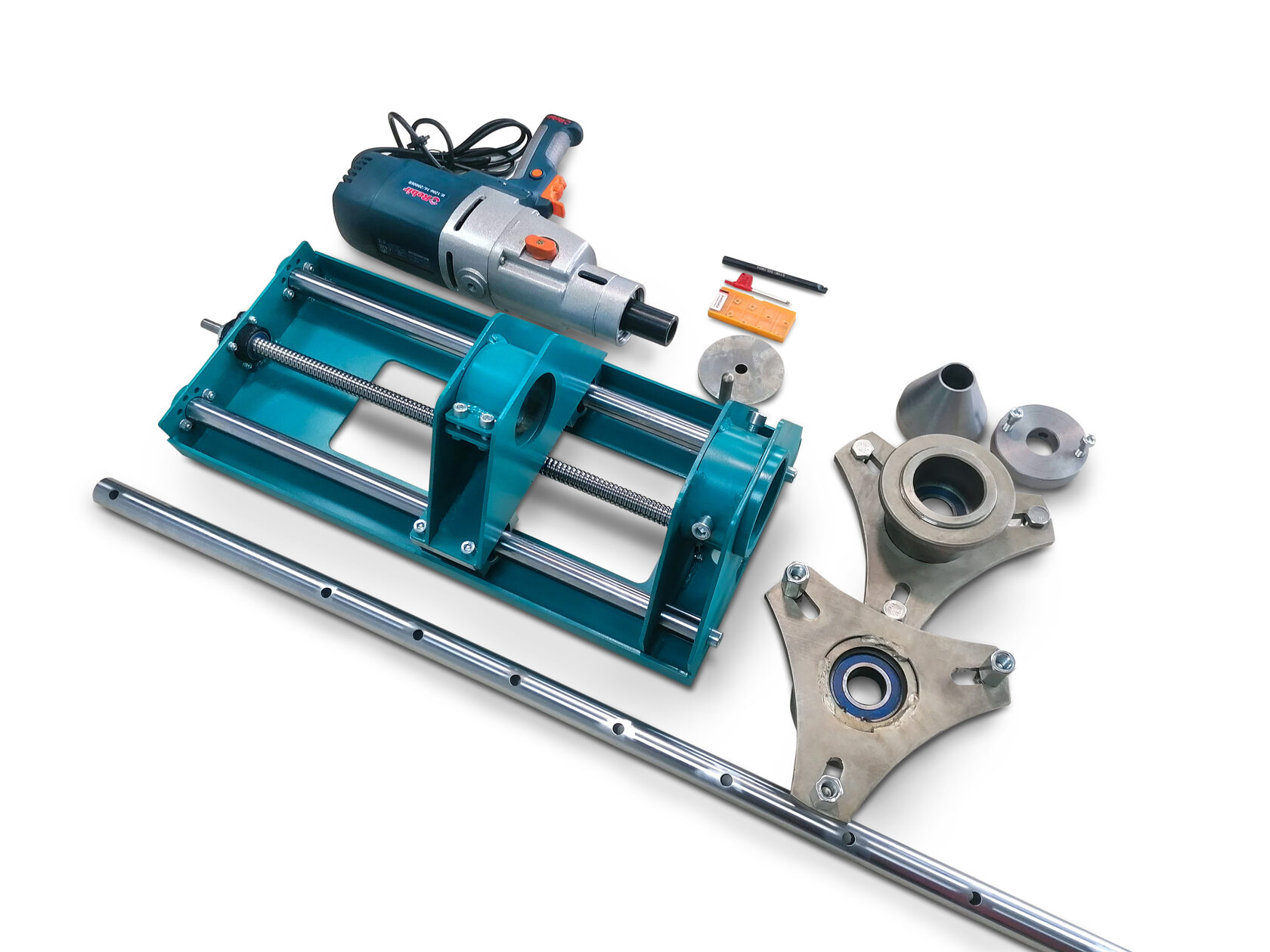

The set includes two full-size hubs (supports). You can install the carriage from any convenient side.

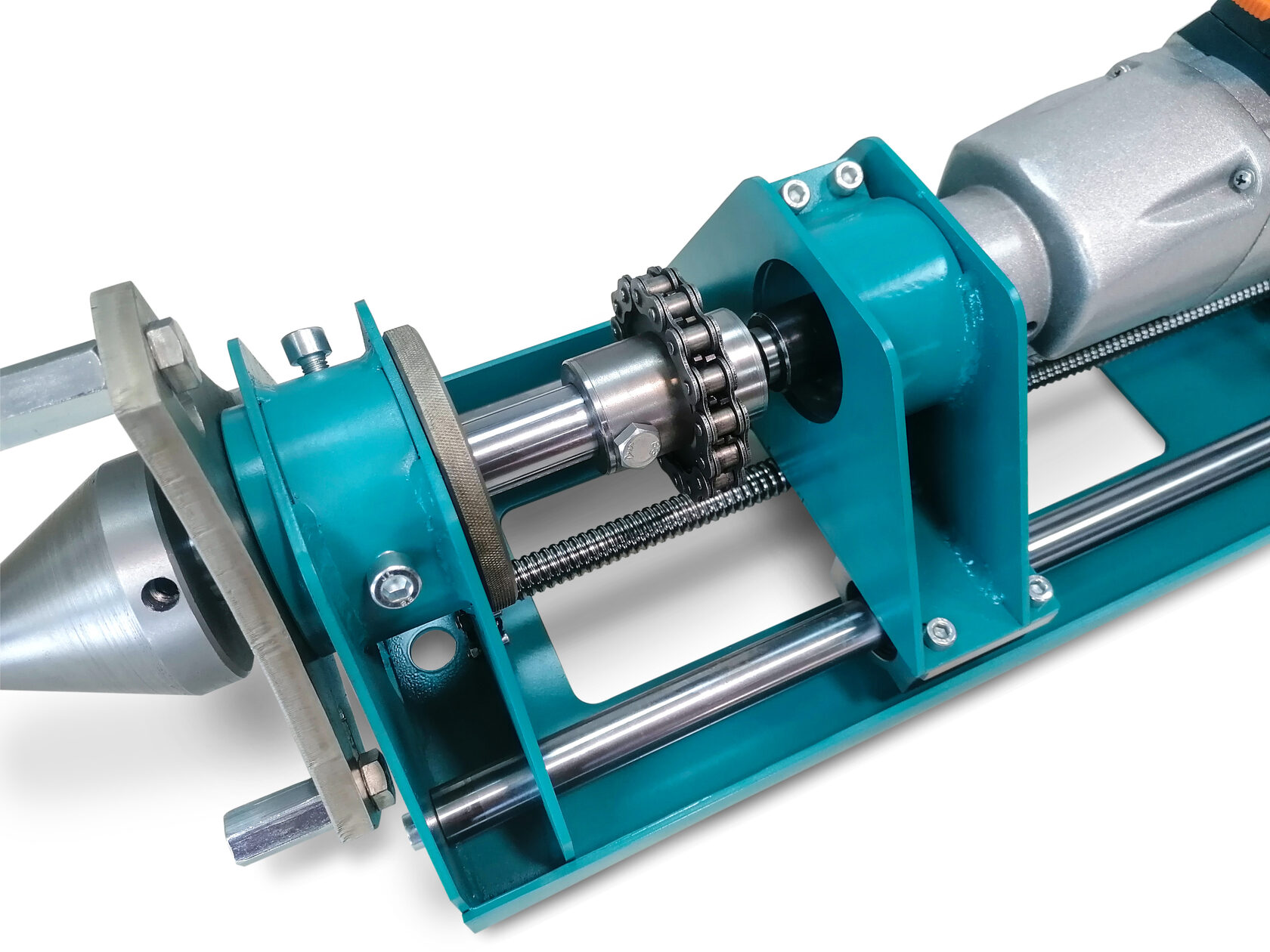

The machine is universal and can be easily upgraded to suit your needs; you can purchase an automatic feed kit and install it on a carriage.

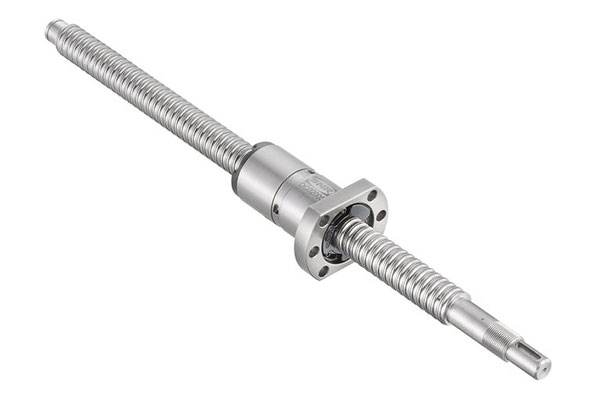

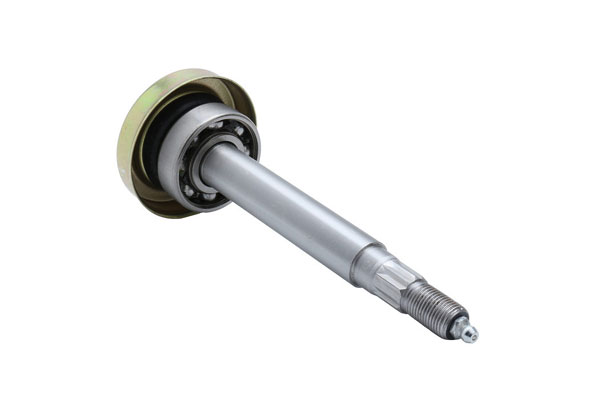

The design of the machine uses components from CNC cups. Thanks to this, the machine has high reliability and accuracy.
Download the complete Mobile Boring Machine Standard catalog with technical specifications and accessories.
Download PDF CatalogThe machine can repair bores from 32 mm to 200 mm.
Yes, the machine supports optional automatic feed systems.
Construction, mining, agriculture, marine and industrial maintenance.
220V / 50Hz.
